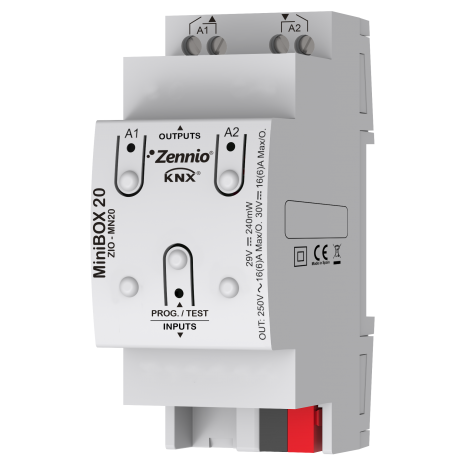

Multifunction actuator with 2 (16A) outputs

Multifunction actuator for DIN rail (2 units) with 2 outputs (16A C-load) which offer multiple configurations as shutter channels and individual outputs. It allows manual control of its outputs thanks to the push buttons on the cover and includes a logical function module.

FEATURES

2 outputs configurable as:
- 1 shutter channels.
- 2 individual outputs*.
Suitable for capacitive loads, maximum 140 ÂµF.
Manual output operation with push button and LED status indicator.
Logical functions included.
Output timing facilities.
Total data saving on KNX bus failure.
Dimensions 67 x 90 x 35mm (2 DIN units).
Integrated KNX BCU.
DIN rail unit assembly (EN 50022), through pressure.
Possibility to connect different phases in adjoining outputs.
Conformity with the CE directives.
