Description

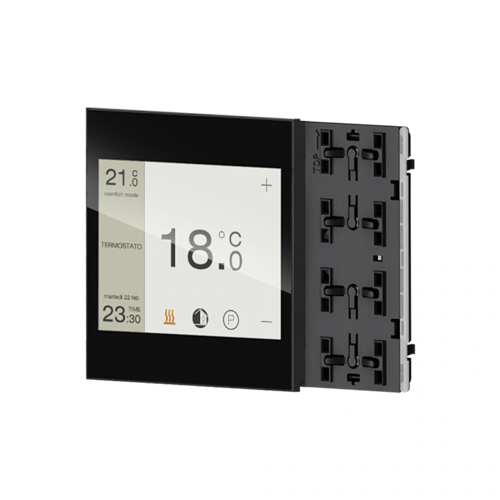

Touch&See control and display unit with pushbutton 2-fold (with blue/green LED)
Description
Ekinex® Touch&See is a KNX S-Mode device for switching,
controlling and displaying bus functions. It is equipped
with an integrated KNX bus communication module and
is designed for wall installation on a flush-mounting box.
Through a 3,5†touch-screen and a user interface organized
in a sequence of graphical pages, it is possible to
control and monitor KNX actuators and display information
received from KNX actuators and sensors in a simple
and intuitive way. The device can also operate as a
room temperature controller receiving values for up to
four independent zones thanks to the temperature value
measured by the integrated sensor and/or by temperature
values received by KNX temperature sensors. The integrated
2-fold pushbutton (max. 4 functions) allows on/off
switching of loads, dimming of lighting devices, controlling
of motor drives or other programmable switching and
control functions. The device is powered by the KNX bus
line and requires an auxiliary power supply 30 Vdc SELV.
Main functional characteristics
The device (touch-screen) can be programmed to carry
out several functions as:
• room chronothermostat for 4 independent zones
• ON/OFF switching of single loads or groups of loads
• dimming of lighting devices
• control of motor drives (for roller shutters, blinds,
curtains, etc.)
• displaying of the status of auxiliary contacts (from
safety/security devices, etc.)
• displaying of time and date of the internal clock or sent
by a KNX timer
• displaying of values received by a KNX wheather station
such as temperature, wind speed, rain presence,
brightness, etc.
• displaying of alarm messages
• recalling and saving of scenes
• sending on the bus of values (temperature, brightness,
etc.)
• locking of the functions through password
• temporary block for screen cleaning.
Functional characteristics (pushbutton)
The device (2-fold pushbutton) can be programmed to
carry out several functions as:
• On/off switching of single loads or groups of loads
• Dimming of lighting devices
• Control of motor drives (for roller shutters, blinds, curtains,
etc.)
• Recalling and saving of scenes
• Sending on the bus of values (temperature, brightness,
etc.)
• Switching to forced functioning (lock)
• Measuring of room temperature and light brightness
through integrated sensors
• Different functions programmable for short pressure /
long pressure of a rocker
• Status feedback or orientation nightlight through 2-color
programmable LEDs
