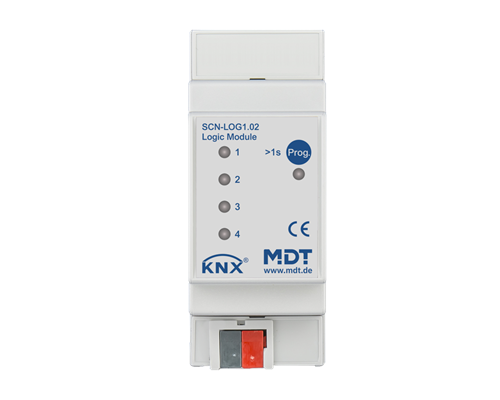

MDT Logic Module, 2SU MDRC

The MDT Logic Module is used for fast and easy compilation of Logic functions to control building automation systems. All the functions are parametrised directly in the ETS without additionally software tools. There are 24 independent function blocks with arbitrary functions available. For each function a description can be stored in the ETS. The 4 LEDS on the front panel can be controlled optional by objects. According to date, time and location the Logic Module calculates sunset, sunrise and twilight. Additionally there are output objects available for summer/winter time, day of the week, every hour, every minute, day/night.

CHARACTERISTICS

Production in Germany, certified according to ISO 9001
24 independent function blocks assignable:
Universal logic with up to 5 conditions
Logic gates with (AND,OR/XOR), each with 8 inputs
Cyclical sending or quering of values
Sending or polling of values after bus voltage return
Value storage if the bus voltage fails
Monitoring of telegrams
Filter functions
Multiplexer/Partition control
Converting of data point types
Comparison of temperature/values
Time functions
Follow-up control with ventilation
Min-/Max/Average value
Universal calculator
Converting to PWM
Telegram multiplier/sequencer
4 LEDS on the front can be controlled optional by objects
3 years warranty
