Description

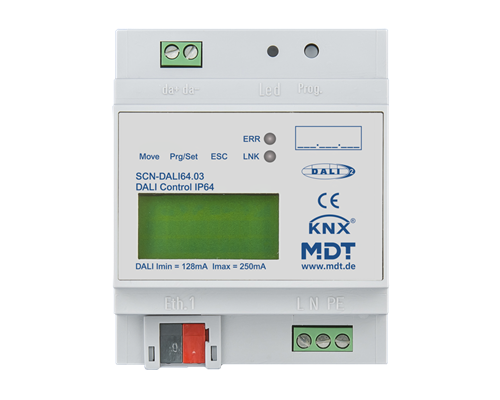

MDT DALI Control IP64 Gateway, 4SU MDRC, up to 64 ECG with with single control

The MDT DaliControl IP64 Gateway receive KNX/EIB telegrams and enables the classic control of 16 DALI groups plus individual control of the ECG.

CHARACTERISTICS

Production in Germany, certified according to ISO 9001
Individual control of up to 64 ECG/16 DALI groups
Supports DALI and DALI-2 standard, as well as DALI DT6/DT8 ECG
Innovative HSV colour control, RGB, RGBW and XY colour according to Dali DT8 standard (16 DALI groups)
Tunable White, colour temperature control (16 DALI groups)
Operation modes like normal operation, continuous operation, night operation, stairwell operation and panic operation
Test mode for systems with emergency lights that were supplied through Central batteries
Support of single battery emergency lights DT-1
Integrated colour control module for time dependent control
Manual operation for all 16 groups
16 scenes with individual dimming times
Energy saving function for switching off the ECGs in the 16 DALI groups (via additional KNX switch actuator)
Simple group attribution directly on the device
Dali Commissioning via Web-browser or directly on the device display
Fault detection of lamp faults and faulty ECGs
Quick exchange of ECG
Free DCA app for commissioning the DALI bus system
Commissioning with ETS5 or higher
3 years warranty
