Description

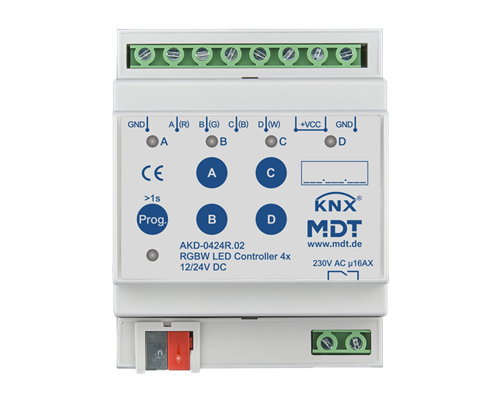

MDT LED Controller 4-channel, 4/8A, MDRC device

For 12/24V CV LED / 4 separate channels RGBW, TW

The MDT LED Controller receives KNX/EIB telegrams and controls 12/24V RGBW LED stripes.

CHARACTERISTICS

Production in Germany, certified according to ISO 9001
Comprehensive function extension
Absolute and relative dimming for HSV colour space and RGB
Turnable White colour temperature control
Selectable dimming curve and PWM frequency up to 1000Hz
Global and individual dimming speeds
Individual and predefined sequences (e.g. TV Simulator)
Repetition of sequences for automatic colour control
Suitable for 12/24V CV LED (Common Anode) 3A for each colour channel (flush mounted device) 4A for each colour channel (MDRC device)
Selectable load distribution: AKD-0424R.02: 4 channels each 4A or 1 ch. 7,0A and 3 ch. 3,0A
Parallel operation of 2 channels
Operating modes: 4 x White, RGB, RGBW, Turnable White
Automatic colour temperature control Dim2Warm
Dynamic daylight control HCL (Human Centric Lighting)
Automatic time-dependent dimming
Day/night function
Overcurrent and over temperature supervision
Intelligent 16A C-Load Relay output to control external LED power supply (not AKD-0424R2.02)
3 years warranty
