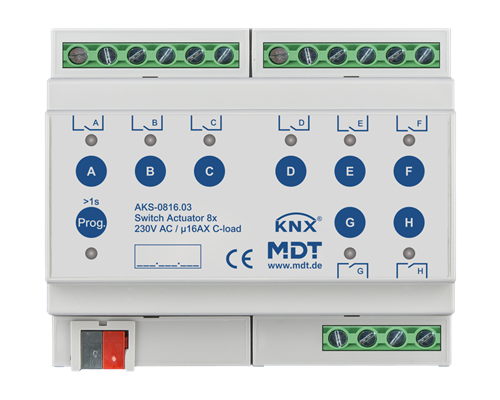

Switch Actuator 8-fold
Part Number: AKS-0816.03
Price: £279.90
Description
MDT Switch Actuator 8-fold, 6SU MDRC, 230VAC, 16A, C-Load 140µF
The new AKS series offers more channels at less space, so lower costs per channel. The MDT Switch Actuator receives KNX/EIB telegrams and switches up to 24 independent electrical loads. Each output uses a bistable relay and can be operated manually via a push button. A green LED indicates the switching status of each output.
CHARACTERISTICS
CHARACTERISTICS
- Production in Germany, certified according to ISO 9001
- Space saving design
- Comprehensive application
- Lockable manual operation and LED indicator for each channel
- NO and NC contact operation
- Status response at manually operation
- Time functions (switch-on/switch-off delay, staircase light functions)
- Extended logical and scene functions for each channel
- Extended status functions (inverted, cyclic, at lock)
- Threshold switch (Byte/2Byte/2Byte float)
- Hour meter for switching
- Priority/forced operation with automatic release time
- 4mm2 / 2x2,5mm² screw terminals. Separate supply phases
- Quick application download (long frame support with ETS 5 or higher)
- 3 years warranty
