Description

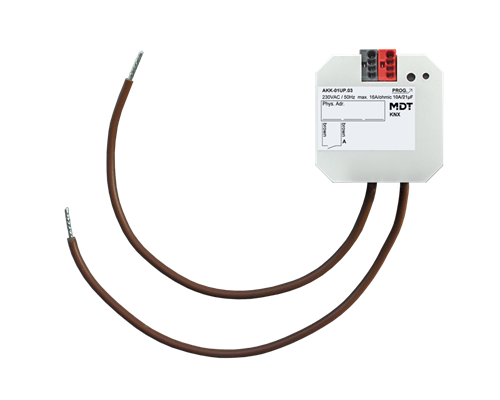

MDT Switch Actuator 1-fold, Flush mounted, 230VAC, 16A

The MDT Switch Actuator AKK receives KNX/EIB telegrams and switches up to 3 independent electrical loads. Each output uses relay (AKK-01UP.03: bistable relay, AKK-02/03UP.03: monostable relay).

CHARACTERISTICS

Production in Germany, certified according to ISO 9001
Function extension
NO and NC contact operation
Time functions (switch-on/switch-off delay)
Extensive staircase light and impulse functions
Status response (active/passive) for each channel
Logical linking of binary data
Extended scene functions for each channel
Central switching functions and lock functions
Adjustable behaviour in case of bus voltage failure (AKK-01UP.02 only)
Adjustable behaviour in case of bus voltage return
Flush mounted in an installation box
Dimensions (W x H x D): 41mm x 41mm x 22mm
Quick application download (long frame support with ETS 5 or higher)
3 years warranty
