Description

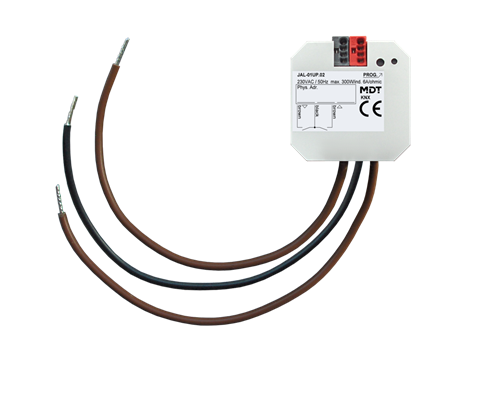

MDT Shutter Actuator 1-fold, Flush mounted, 6A, shutter motors 230VAC up to 300W

The MDT Shutter Actuator receives KNX/EIB telegrams and controls up to 8 independent shutter or sun-blind drives. Each output uses two monostable relays. The MDRC Shutter Actuators can be operated manually via a push button.

CHARACTERISTICS

Production in Germany, certified according to ISO 9001
Comprehensive application
With travel time measurement (JAL-0x10M.02 only)
Lockable manual operation and LED indicator for each channel
Operation mode blind/shutter
Practical ventilation function (window open/tilt)
Automatic sun shading/slat adjustment with sun position calculation (exclusive JAL-01UP.02)
Travel-, pause-at-change-of-direction and step time adjustable
Separate travel time for up and down adjustable
Tip operation for accurate positioning
Extended 1Bit automatic positions and logical functions
1Byte absolute positioning for shutter and blinds
Alarm, central- and block functions
Behaviour after alarms and locking separately configurable
Priority/forced operation with automatic release time
Adjustable behaviour in case of bus voltage failure or return (exclusive JAL-01UP.02 and JAL-0210.02)
Two contacts share one L-connection (MDRC device)
Common L-connection (flush-mounted device)(exclusive JAL-01UP.02 and JAL-0210.02)
Quick application download (long frame support with ETS 5 or higher)
3 years warranty
