Glass Push Button II Smart, Black
Part Number: BE-GT2TS.01
Price: £207.00
Description
MDT Glass Push Button II Smart with temperature sensor, Black
The MDT Glass Push Button II Smart releases KNX telegrams after touching the sensor areas on top, 1 or 2 Button operation can be adjusted. The device provides extensive functions like switching of lighting, operation of blinds and shutters, contact type and block communication objects for each channel. The Glass Push Button has 4 integrated logical modules.
The Glass Push Button II Smart has a large, coloured active display to indicate function and status. Up to 12 functions on 2 or 3 levels (2x6 or 3x4 functions)can be parameterised. The Glass Push Button II Smart can be also used as 6-fold push button without function levels.(From Hardware Revision 2.0)
The Glass Push Button II Smart with temperature sensor offers additional functions to set temperature and operation mode. In combination with the MDT Heating Actuator an efficient room temperature regulation can be configured and visualised. Furthermore user defined 1Bit messages and 14Byte text telegrams can be indicated.
Device Configuration App (DCA) to upload particular icons
The Glass Push Button II Smart has a large, coloured active display to indicate function and status. Up to 12 functions on 2 or 3 levels (2x6 or 3x4 functions)can be parameterised. The Glass Push Button II Smart can be also used as 6-fold push button without function levels.(From Hardware Revision 2.0)
The Glass Push Button II Smart with temperature sensor offers additional functions to set temperature and operation mode. In combination with the MDT Heating Actuator an efficient room temperature regulation can be configured and visualised. Furthermore user defined 1Bit messages and 14Byte text telegrams can be indicated.
Device Configuration App (DCA) to upload particular icons
The free app for the ETS5 can be downloaded here and in the KNX online shop. After the installation the app is available in the menu item DCA of the Glass Push Button application.
CHARACTERISTICS- Production in Germany, certified according to ISO 9001
- The buttons can be programmed for 1 or 2 button operation
- Up to 12 functions on 2 or 3 levels (2x6 or 3x4 functions)
- Up to 6 functions without level switching (From Hardware Revision 2.0)

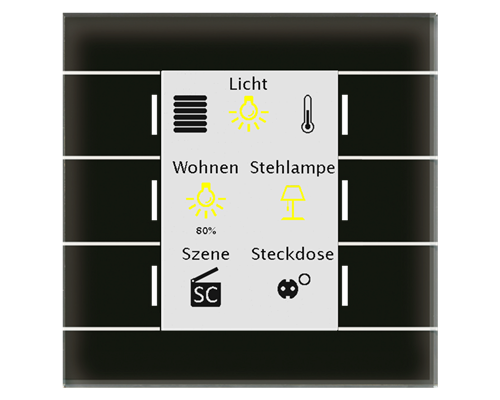

- Large, coloured active display to indicate function and status
- Adjustable background colour of the display (white or black)
- Symbols and plain text adjustable for each button/function
- With temperature sensor for room temperature measurement (not BE-GT20x.01)
- Additional functions for temperature setting and operation mode (not BE-GT20x.01)
- 1 or 2 button operation for switching, dimming, shutters, values
- Short/long button push with 2 objects
- RGB status for all buttons separately controllable from each level
- Indication of inside/outside temperature and time
- Automatic display brightness via light sensor and day/night object
- Slap function with additional switch channel
- Recommended installation height as push button: 1,10 - 1,25m
- Recommended installation height as operating device: 1,50 - 1,60m
- Installation in a installation box
- Dimensions (W x H): 92mm x 92mm
- Integrated bus coupling unit
- 3 years warranty
