Description

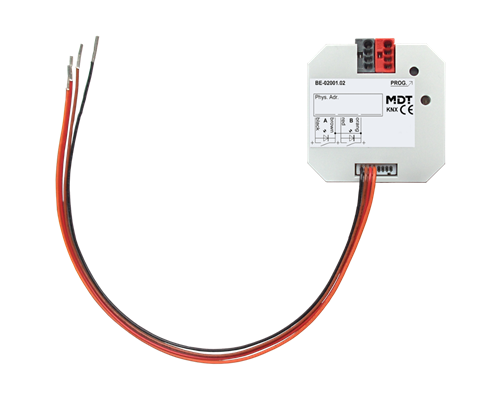

Universal Interface 2-fold, Flush mounted, to connect potential free contacts, with LED output

The inputs of the MDT Universal Interface react depending on their programmed parameters and send a telegram on the KNX bus. Conventional push-buttons or auxiliary contacts (e.g. door and window contacts) can be connected to the device.

CHARACTERISTICS

Production in Germany, certified according to ISO 9001
To connect push-buttons or auxiliary contacts
Each input can be set as 1,5mA low current output for LED (Not with BE-02230.01)
New multi touch function, sends up to 4 values/DPTs on the same or diffrent objects
Innovative group control with long/extra long button press
4 integrated logical modules, e.g. interpretation of the inputs (e.g. window closed or sending second object)
NO or NC contact operation, programmable length of button push
Forced guidance for each channel
Short/long button push with 2 objects
Integrated pulse and switching counters with extensive counter functions
Cyclical sending of contact state programmable
Flush mounted installation (length of connection cables: 22cm)
Dimensions (W x H x D): 41mm x 41mm x 12mm
Integrated bus coupling unit
3 years warranty
