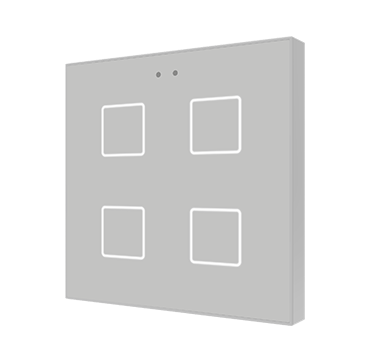

Flat 4 v2. Capacitive push button with temperature probe - Silver
Part Number: ZVIF4V2S
Trade Price: £0.00
Price: £115.00
Description
Flat 4 v2. Capacitive push button with temperature probe - 4 button - Silver
Customisable backlit capacitive touch switches in the Flat family with proximity sensor and flat design (9 mm). Create unique designs, including images, icons, texts or logos printed on tempered glass. 1, 2, 4 or 6 button versions available all with backlit icons, that adapt according to ambient luminosity and proximity sensor. Flat v2 incorporates an internal temperature probe and thermostat, as well as 2 analog-digital inputs to be configured as binary inputs, sensors, push buttons, temperature probes or motion detectors. Accessories: temperature probe and motion sensor.
Available models: Standard White/Gloss White/Black/Silver or Customised.
On-line application for designing your own Capacitive Switch
FEATURES
- Printed glass touch panel (image customizable through web application)
- 1, 2, 4 or 6 touch areas
- 2 analog/digital inputs
- Thermostat
- Built-in temperature sensor
- Backlighting of touch areas to indicate status
- Luminosity and proximity sensor
- Total data saving on KNX bus failure
- Integrated KNX BCU
- Dimensions 81 x 81 x 31mm (it protrudes 9mm from the wall)
- Flush mount on back box
- Conformity with the CE directives (CE-mark on the back side)
