USB/S1.2 USB Interface, MDRC

Connects the KNX installation with PC software clients such as ETS or visualisations (programming, bus monitor, group monitor). The device supports Long Frames which allows faster download and download of KNX Secure devices.

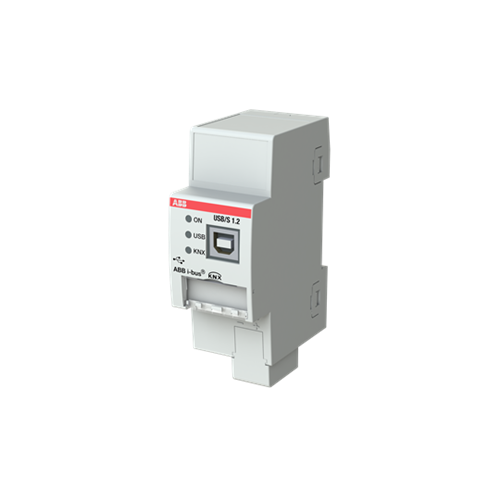

The ABB i-busÂ® KNX USB Interface USB/S 1.2 is a KNX modular installation device (MDRC) in Pro M design for installation in the distribution board on a 35 mm mounting rail.

The USB Interface enables communication between ETS and a KNX system (programming, bus monitoring, group monitoring). Visual display systems, or other clients, can also use the USB to access KNX.

The device is connected to the computer via a type B USB cable and is ready for use as soon as the USB is connected. The necessary driver is automatically installed under Windows the first time it is connected.

Operating status and telegram traffic are displayed via three LEDs. The KNX and USB components are electrically isolated from each other.
