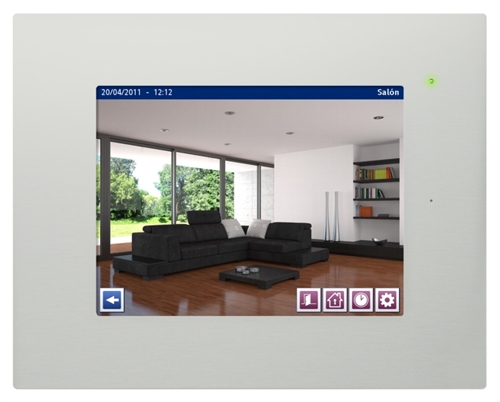

HC3L-KNX 10,1" TOUCH PANEL, CLASSIC GREY

Description

Control unit for KNX-based home and building automation installations, featuring a 10,1â€ TFT capacitive touch screen with IPS technology, integrated web server, and video door phone function.

Function highlights:

Control and monitoring of KNX devices
Simple, user-friendly navigation through floorplans and zone
Up to 512 configurable pages, with up to 8 control functions per page (more than 4000 functions
Customizable background image
User-editable scene
Weekly time schedule
Alarm monitoring with event lo
Presence simulation with day and night schedule
Event notifications by e-mail and GSM (*
Logic functions (logic gates, comparators, timers, etc.
Four independent thermostat
Touch gestures: 4 directional gestures + multitouch gestur
Video door phone function, with full duplex audio and echo cancellation (**
IP camera monitoring (**)

Remote control from smartphones, tablets, and PCs

Integrated stereo loudspeakers and digital microphone

Four multi-function inputs, individually configurable as binary or temperature probe inputs

Real-time clock (RTC) with backup battery

Integrated KNX bus coupling unit

Very low power consumption
