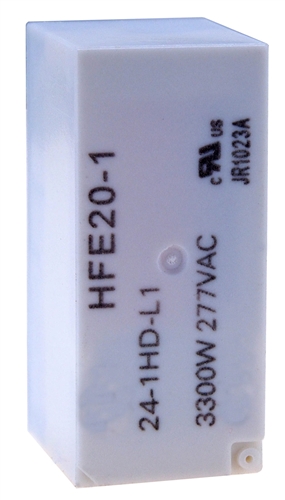

Relay for 5321 Multi IO Extension 590 Tungsten contacts
Part Number: 5348
Price: £69.60
Description
Multi IO Extension 590
The Multi IO Extension 590 serves as a power-saving alternative to commercial standard coupling relays. The coupling relay is controlled as a mono-stable relay, but uses a bi-stable relay internally, thus reducing the holding current by up to 95%.Technical Data
Mechanical data
- Housing: plastic
- DIN rail mounted device, width: 1 modules (18 mm)
- Weigth: approx 50 g
Indicator and fuse
- LED (green) show relay state
- Glass fuse 5x20mm, 10 A
Connectors
- Screw terminal (2 poles) for 24 V⎓ input
- Screw terminal (3 poles) for 230 V∿ output
Input
- Input voltage (signal) 24 V⎓
- “Holding current†< 2 mA
Output
- Fuse 10 A
- Relay type: 250 V∿ / 16 A, bi-stable
Depending on load type (capacitive or inductive) the switching power can be reduced significantly.
Features
- Art.-Nr. 5347
- EAN: 42 6026277 347 0
- Contact material: AgSnO2
- Input 24 V
- Output 230 V / 16 A, bi-stable
- Delivery unit: 10 pcs.
- Art.-Nr. 5348
- EAN: 42 6026277 348 7
- Contact material: Tungsten / AgSnO2
- For high inrush currents, e.g. for LED lamps
- Input 24 V
- Output 230 V / 16 A, bi-stable
- Delivery unit: 10 pcs.
- Art.-Nr. 5349
- EAN: 42 6026277 349 4
- Contact material: AgSnO2
- For manual operation
- Input 24 V
- Output 230 V / 16 A, bi-stable
- Delivery unit: 10 pcs.
