Description

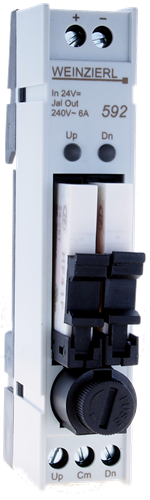

Multi IO Extension 592 Standard The Multi IO Extension 592 for shutter has been specially developed for the control of blinds and shutters. The double relay is connected to only one output of a KNX Multi IO 570 or 580. The direction control of the relay outputs is performed automatically by the KNX Multi IO by a defined voltage interruption of the holding current.The outputs are electro-mechanically locked against each other to prevent a motor defect.
The Multi IO Extension 592 has an integrated fuse to protect high-quality equipment.
TECHNICAL DATA
Mechanical data
Housing: plasti
DIN rail mounted device, width: 1 modules (18 mm
Weight: approx 50
Indicator and fuse
LED (green) show directio
Glass fuse 5x20mm, 6 AConnectors
Screw terminal (2 poles) for 24 V⎓ input
Screw terminal (3 poles) for 230 V∿ outputInput
- Input voltage (signal) 24 V⎓
Output
Fuse 6
Relay type: 250 V∿ / 6 A, bi-stabl
Depending on load type (capacitive or inductive) the switching power can be reduced significantly.
