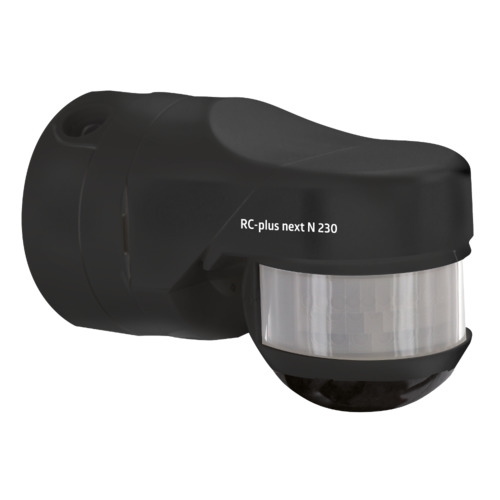

LUXOMAT®RC-Plus Next KNX-DX Black
Part Number: 93395
Price: £186.90
Description
Features
- KNX occupancy detector with integrated KNX bus connector
- 1x Light (for regulating or switching), 1x slave output, 3 separate HVAC-blocs
- Intelligent semi-automatic mode, occupancy-independent regulating mode (photoelectric switch), full automatic mode
- Two logic modules
- Individual adaption of detection sensitivity for each PIR sensor
- Direction of movement can be identified
- Anti-creep zone
- Measuring of mixed light thanks to internal light sensor
- Various locking functions
- Status LEDs can be activated / deactivated
- Programming button (phys. address) can be operated via remote control
- Regulation/switching of three light groups via offset (external influence possible)
- Short presence, self-adjusting follow-up time, corridor function
- Recall of light scenes
- Temperature sensor
- HVAC mode (1=comfort, 2=stand-by, 3=economy, 4 = antifreeze/heat protection)
- IR remote control-capable via 5 button remote control, programmable at choice (accessory)
- Occupancy simulation
- PIR sensors can be deactivated individually
- Detection area can be extended thanks to master-slave-mode
- Extensive optimization options for light measurement
- Measured light value is communicated to the bus
- IR remote control-capable via IR remote control (optionally)
- PIN code
- Manual influence via external KNX push buttons possible
- Function control (heartbeat, cyclical sending)
- Forced switch-off
- Intelligent central-off function
- Premonition of switch-off
- Behaviour upon bus voltage return definable at choice
- Variable safety pause after switching off the lights
- Settings ex ETS 4 for integration in KNX systems
- The product database for import into the ETS database can be downloaded from the B.E.G. homepage.
- Adaption of dimming curve
- Determination of the reflection factor, e.g. on a desk, with the optional BLE-IR-Adapter
- Burn-in function for fluorescent lamps selectable from 1h till 100h
- Soft-start
- Faulty switching due to animals can be avoided by reducing the sensitivity
- Integrated downlight with orientation or a night light (RGB) function
- Blinds
- Wall, ceiling and corner mounting
- Application examples:
monitoring a whole side of a building, warehouses, ramps or garages
