KNX TP Multi IO 570

Description

KNX Multi IO 570

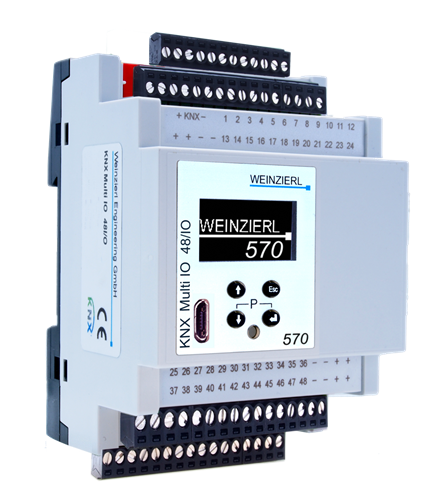

The KNX TP Multi IO 570 is a universal binary interface for building control. It provides 48 I/O lines. Each line can be used as binary input as well as binary output. The peripherals can be fed by an external voltage of 24 VâŽ“. Channels which are configured as inputs can be used to control lights or blinds via the KNX network. They also can be used to count impulses, e.g. as interface for energy meters. Channels which are configured as outputs can directly drive signal LEDs, external coupling relays (e.g. Multi IO Extension 590) or jalousie relays (Multi IO Extension 592).

The integrated USB interface allows establishing a bidirectional connection between a PC and the KNX bus. The USB connector has a galvanic separation from the KNX bus. Both ETS (Version 4.2 or later) and visualization tools support this interface. The configuration of the device is done with ETS, a local download is possible. An easy to read OLED display on the front panel enables a manual operation to test the installation

Mechanical data

Housing: plastic
DIN rail mounted device, width: 4 modules (72 mm)
Weigth: approx 200 g

Controls and indicators

LED display with four buttons
KNX programming LED

Power Supply

KNX Bus approx. 6 mA
Power Supply for I/O lines: 24 VâŽ“, ca. 25 mA with no load

Connectors

Connector for KNX Bus (red / black)
Pluggable screw connector (4 poles) for power supply
Pluggable screw connector (12 poles) for I/O lines
Connector for USB 2.0 Micro-B

I/O lines

Output: Open-Drain, max. 100 mA, incl. flyback diode
Input: Incl. pull-up resistor
