KNX PowerSupply 365
Part Number: 5335
Price: £208.88
Description

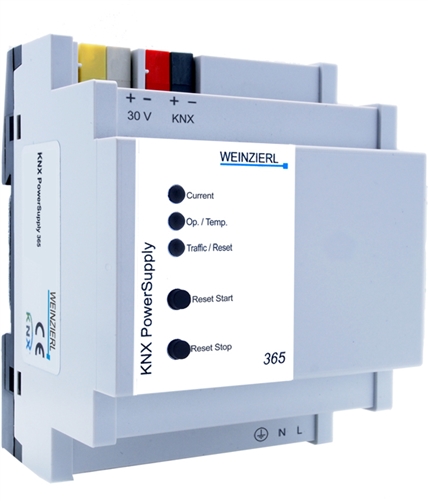

KNX PowerSupply 365
The KNX PowerSupply 365 is a 640 mA bus power supply with high efficiency and a small footprint of only 4 units (72 mm). The device has an integrated bus choke and additionally provides an output for auxiliary power.
Three multicolor LEDs on the front indicate the condition of the device. They signal overload with warning, exceeding temperature and telegram traffic and the reset status. The two buttons enable the KNX line to be reset.
Mechanical data
- Housing: plastic
- DIN rail mounted device, width: 4 modules (72mm)
- Weigth: approx 260 g
User Interface
- Two keys for reset of KNX line
- Two Multicolor LED
Connectors
- Plug for external power supply 230 V AC
- Connector for KNX TP (red/black)
- Connector for auxiliary power output (yellow/white)
