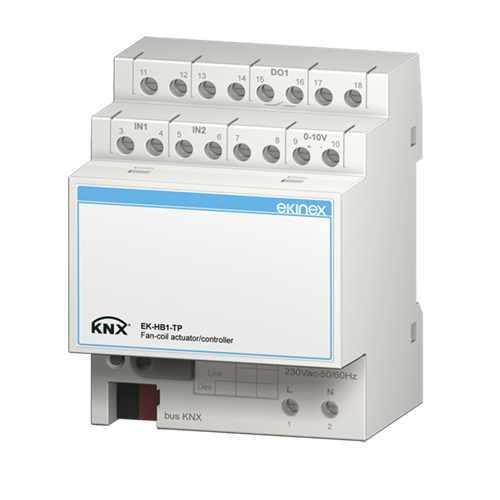

Fancoil actuator / controller - 0-10 V fan control

Description

The EK-Hx1-TP series of actuators / controllers includes 3 ekinexÂ® devices KNX S-mode suitable for the command of air terminals for thermoregulation applications. The EK-HC1-TP product is the most complete and versatile of the series and can be applied to both terminals with 2-pipe hydraulic distribution that to 4 pipes, with fan with 1-3 discrete speed or with motor brushless with control signal 0 ... 10V; this version also allows manual control of the outputs by membrane buttons. The EKHA1-TP versions and EK-HB1-TP are instead cut out for 2-pipe applications, respectively the first can control a fan with 1-3 discrete speeds and the second a brushless motor with 0 ... 10V signal

â€¢ Power supply from the bus + auxiliary power supply of 230 Vac 50/60 Hz network â€¢ Control of systems with 2 hydraulic distribution pipes with ON / OFF shut-off valve (1 SPST relay) â€¢ 1 0 ... 10V output for control of 1 fan with brushless motor â€¢ 2 freely configurable inputs for acquisition passive temperature probes (NTC sensors a 10kï— @ 25 Â° C) or as free binary inputs from potential
