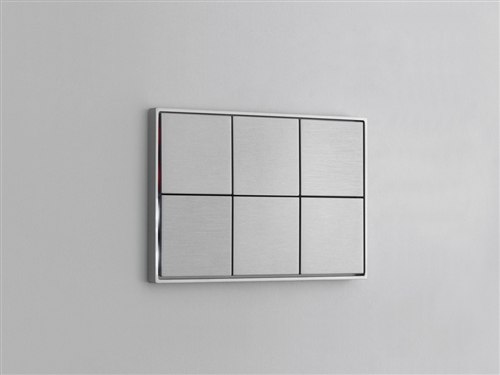

Pushbutton 6-fold - blue/green LED
Part Number: EK-EB2-TP
Price: £0.00
Description
Pushbutton 6-fold - blue/green LED
Description
The ekinex® 6-fold pushbutton (max 12 functions) is a Smode
KNX device for on/off switching of loads, dimming
of lighting devices, controlling of motor drives or other programmable
switching and control functions. It is equipped
with an integrated KNX bus communication module and
is designed for wall installation on flush mounting box.
Each channel can be freely programmed for 1 or 2 bus
functions and is provided with two LEDs configurable for
example as a status signal or orientation nightlight. The
pushbutton has to be completed with six rockers and a
frame that must be ordered separately. Pushing a rocker,
the device sends on the bus a telegram, which is received
and executed by one or more KNX actuators. The device
is powered by the KNX bus line with a SELV voltage 30
Vdc and does not require auxiliary power
Main functional characteristics
• On/off switching of single loads or groups of loads
• Dimming of lighting devices
• Control of motor drives (for roller shutters, blinds, curtains,
etc.)
• Recalling and saving of scenes
• Sending on the bus of values (temperature, brightness,
etc.)
• Switching to forced functioning (lock)
• Measuring of room temperature and light brightness
through integrated sensors
• Different functions programmable for short pressure /
long pressure of a rocker
• Status feedback or orientation nightlight through 2-color
programmable LEDs
Other characteristics
• Housing in plastic material
• Wall installation in flush mounting box
• Protection degree IP20 (according to EN 60529)
• Classification climatic 3K5 and mechanical 3M2 (according
to EN 50491-2)
• Pollution degree 2 (according to IEC 60664-1)
• Weight 55 g (75 g with mounting support)
• Dimensions 122 x 78 x 35 mm (WxHxD)
