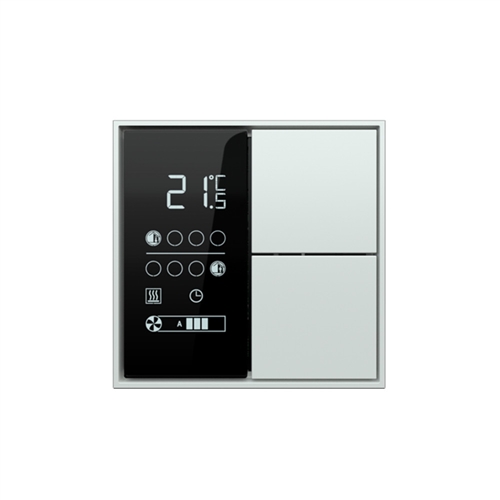

EQ2 room temperature controller - red/white LED
Part Number: EK-EQ2-TP-RW
Price: £0.00
Description
EQ2 room temperature controller - red/white LED
• Temperature measuring through integrated sensor with
possibility of sending the value on the bus
• 2-point (on/off) or proportional (PWM or continuous)
room temperature regulation
• Ventilation control with continuous or 3-speed regulation
• Seasonal modes: heating and cooling with possibility of
local or via bus seasonal changeover
• Operating modes: comfort, standby, economy and building
protection with different setpoint for heating and
cooling
• Manual or automatic control of fan-coil units with 2 or
4-pipes hydraulic distribution
• Automatic switching of the operating modes depending
on presence or window opening
• Weighted average of two temperature values
• Temperature displaying (measured, setpoint and
outdoor values as °C or °F), alarms and errors (with
alphanumeric coding)
• Floor temperature limitation and antincondensation (for
radiant panels)
• Antistratification function
• Automatic switching between operating modes through
card holder contact
• Delayed start of a fan (“hot-startâ€) with time-scheduling
or depending on the water temperature measured at
the coil for thermal exchange
• Window opening reporting
