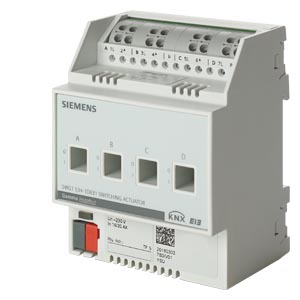

Switching Actuator N532D31 4 x AC 230 V 10AX (16A AC1)

Switching of capacitive, inductive and resistive loads
Maintenance free terminals for connection and through-wiring of untreated single-core, stranded or multi-core conductors, 0.5 ... 2.5mmÂ² conductor area
Mechanical slide switches per output for checking the installation

Functions when configured with ETS

Comprehensive control, override and diagnostic functions per channel
Control functions: Switching with status annunciation, logic gates, central switching, scene control, timer functions, night mode
Override functions: Manual ON, Permanent OFF, Lock, Input monitoring
Diagnostic functions: Counting of switching cycles and operating hours, status annunciation
Control value input for analog values configurable as an alternative to the switching input
