Description

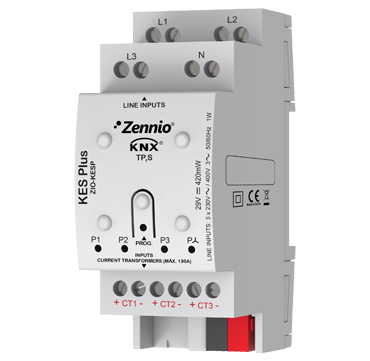

KES Plus KNX Electrical energy meter

Zennio electrical energy meter for single-phase or three-phase systems. It can measure and notify in KNX system, not only the consumed or produced energy (KWh), but also the associated cost according to 6 different tariffs, the CO2 emissions, instant active and reactive power, power factor and other information related with the use of electric energy in the building. Alarms and notifications can be configured as warnings when power exceeds the limits established, for example, to disconnect low priority systems to reduce consumption. In addition, 10 logical functions are added to enlarge the versatility of the automations in KNX system. Only compatible with Zennio Current Transformers. Accessory: Current transformer ZN1AC-CST60 and ZN1AC-CST120

FEATURES

Measurement of main electrical magnitudes.
Suitable for three-phase or single-phase installations (3 lines).
Power measurement (W or kW) and Energy with 3 registers.
Currency and CO2 emissions estimation registers.
KNX system clock synchronization is allowed.
Up to 6 tariff cost-counters.
Total data saving on KNX bus failure.
Integrated KNX BCU.
Dimensions 67 x 90 x 35mm (2 DIN units).
DIN rail mounting (EN 50022), through pressure.
Conformity with the CE directives (CE-mark on the right side).
