Description

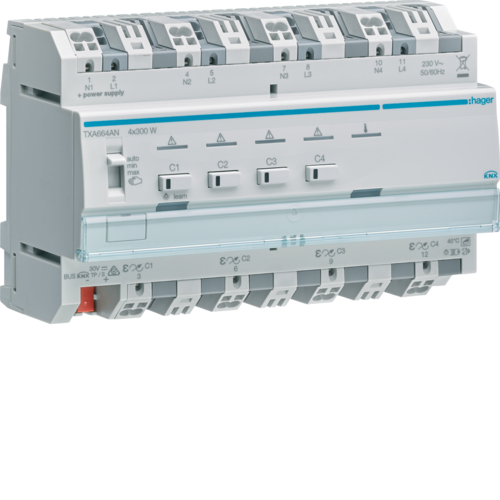

Dimmer 4 channels 300W NE with parallelization

System information

This device is a product of the KNX system and corresponds to the KNX guidelines. Detailed specialised knowledge obtained from KNX training courses.

is required for understanding. The planning, installation and commissioning of the device is carried out with the help of KNX-certified software.

system link commissioning:

The function of the device is software-dependent. The software is to be taken from the product database. You can find the latest version of the product database, technical descriptions as well as conversion and additional support programmes on our website.

easy link commissioning:

The function of the device is configuration dependent. The configuration can also be done using devices developed specially for simple setting and start-up.

This type of configuration is only possible with devices of the easy link system. easy link stands for easy, visually supported start-up. Preconfigured standard functions are assigned to the in/outputs by means of a service module.

Functional description

The device has four load outputs that can be connected to different phases. It works with automatic load detection depending on the connected load in the phase cut-on or phase cut-off and enables switching and dimming via the KNX bus of:

Incandescent lamps and halogen lamps
Low-voltage halogen lamps with conventional or electronic transformer
dimmable LED and energy-saving lamps

Additionally, the device has a learn function for more efficient control of energy-saving lamps and 230 V LED lamps.

Product characteristics

Status display of the output on the device
Manual activation of the output on the device possible, building site operation
Automatic load detection
Setting the minimum and maximum dimming value
Timer functions
Scene function
Forced position by higher-level controller
Combination of the outputs to dim more power

Short-circuit and overload protection

Short-circuit and overload are signalled via the control LED. The load is throttled (see Troubleshooting).

Overheating protection

Overheating of the device is signalled by a permanent light of the control LED. The connected load is throttled (see Troubleshooting).
