Description

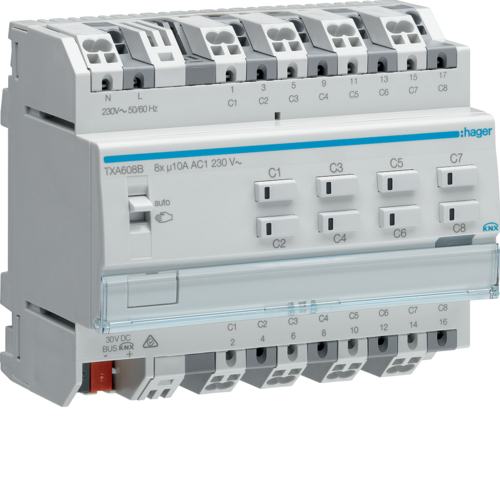

Output module 8x 10A /230V~, KNX

System information

This device is a product of KNX system and corresponds to the KNX guidelines. Detailed specialised knowledge obtained from KNX training courses is required for comprehension. The planning, installation and commissioning of the device is carried out with the help of KNX-certified software.

Systemlink start-up:

The function of the device is software-dependent. The software is to be taken from the product database. You can find the latest version of the product database, technical descriptions as well as conversion and additional support programmes on hager website.

Easylink start-up:

The function of the device is configuration-dependent. The configuration can also be done using devices developed specially for simple setting and start-up.

This type of configuration is only possible with devices of the easylink system. Easylink stands for easy, visually supported start-up. Preconfigured standard functions are assigned to the in/outputs by means of a service module.

Functional description

The device receives telegrams from sensors or other controllers via the KNX installation bus and switches electrical loads with its independent relay contacts.

Correct use

Switch electrical loads of 230 V AC with potential-free contacts.
Switching electrically operated motors of 230 V AC for blinds, shutters, awnings and similar hangings.
Mounting on DIN rail according to DIN EN 60715 in the distribution box.

Product characteristics

manual activation of the outputs on the device possible, building site operation
Status display of the outputs on the device
Scene function
Forced position by higher-level controller
Connection of various external conductors possible.

Time switching functions

Position can be started directly
Slat position directly controllable
Feedback of operating state, shutter position and slat adjustment
3 Alarms
