Description

Module 1 flush mounted dimmer 200W

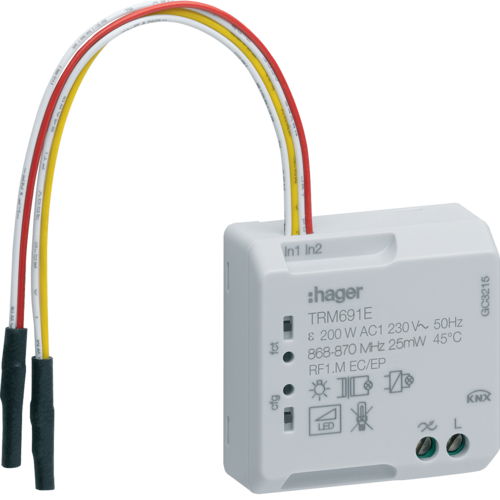

The TRM691E is a radio transmitter/receiver, powered in series with the load. It is used for dimming incandescent, LV and ULV halogen, and dimmable LED loads.

It includes:

2 inputs for connection of pushbuttons, switches or other automatic control contacts.
A dimming output (max. 200W ).

The inputs connected to the product are freely programmable. They can control the local output or other outputs.

Quicklink products can be configured together and operated within the same radio installation.

Caption

Pushbutton or switch
Connecting wires of the 2 inputs for a switch or pushbutton
Pushbutton and feature LED T of output
Pushbutton and configuration LED R
Connector block:
Phase 230 V
Dimming output 230 V

Features

1 independent channel controlled by KNX radio. (output 200W AC1 230V)
2 inputs for contact free of potential

In operation:

Availability of output manual control by pushbutton
Display of output state on LED fct (red light ON = active output)

The specific features of each product depend on configuration and set-up.

Learning the load type

The first time it is turned on, the product undertakes automatic learning of the connected lamp type. A brief flicker may be observed during this phase (duration 2 to 3 s) after which the lamp type is stored in the product.

After a power outage or change of lamp, the dimmer starts a new detection.

If the user notices unsatisfactory operation, the setting can be edited manually.

Protection against overheating and overload

The product is automatically protected against overloads, short circuits and overheating. In the event of overheating or overload, the available power is automatically reduced.
