Description

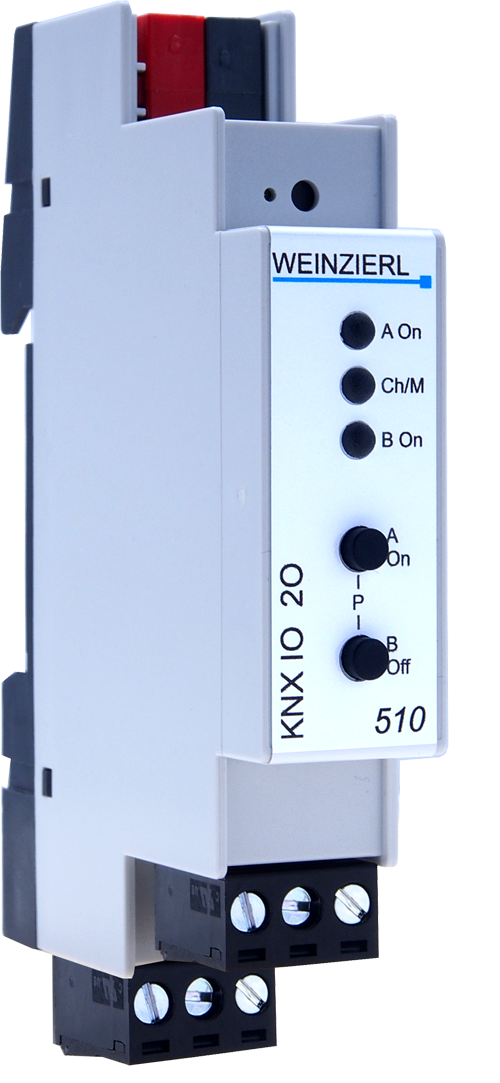

KNX IO 510

The KNX IO 510 (2O) is a compact switching actuator with 2 bi-stable relay outputs. The actuator provides the function for universal outputs including scene control, timer, staircase lightning and to control heating valves (PWM for thermoelectric valve drives).

Two push buttons and three LEDs allow a local operation and a visualization of the device state. In addition to the output channels the device includes 16 independent functions for logic or timer control.

Technical data

Mechanical Data

Housing: plastic
DIN rail mounted device, width: 1 modules (18 mm)
Weigth: approx 50 g

User Interface

two keys for on device settings
three multi color LEDs
KNX programming button with LED

KNX

Device Model System B
Compatible with ETS 4.2 (or higher)

Connectors

Connector for KNX Bus (red / black)
Pluggable screw connector (3 poles) for blind output
Pluggable screw connector (3 poles) for binary input channel 1 and 2

Output channel (Actuator)

Relay type: 230V~/8A, bi-stable Depending on load type (capacitive or inductive) the switching power can be reduced significantly
