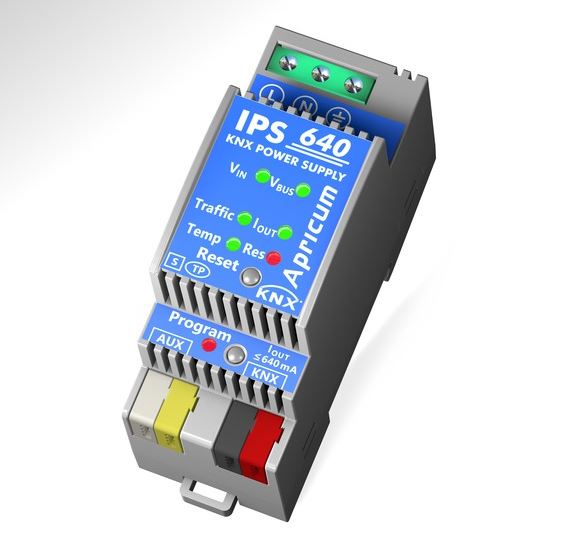

KNX Power supply unit with diagnostics

Specifications & Special Features:

The first 640mA power supply unit in its class with a mounting width of only 2 space units (36mm)
Lower installation cost due to low space consumption
Output overload and short circuit protected
Additional unchoked auxiliary power output
Wide variety of diagnostic and logic functions
Remote reset function: reset by communication object
Monitoring of output voltage, output current, bus traffic load and device temperature
Monitoring of events (threshold, device startup, KNX bus restart)
Monitoring of output failures (due to overload, short circuit, AC break)
Configurable threshold functionality for further evaluation
Switching of KNX bus devices
Informational readout: cyclic, on demand or after change in value
Configurable additional alarms
Large number of communication objects available
Device status indicated by six duo LED display
Internal supply via externally-connected 230 V AC
Can be used with ETS4 and higher
All configurations can be done via ETS
Device reset over the databus or with a push button
Installation module for 35mm top-hat rails (DIN, TH35)
