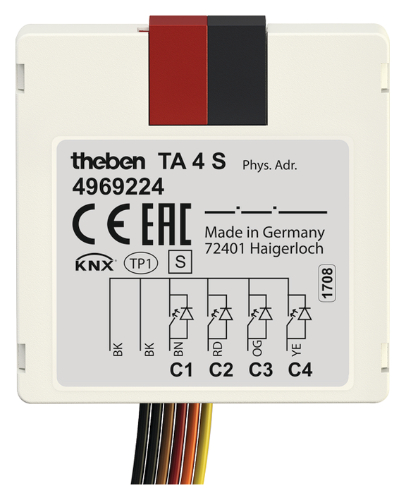

TA 4 S KNX

Binary input/binary output sensor interfaces
4-way key interface
6-pole cable connection
2 NTC inputs for detection of the actual temperature
Can be installed in flush-mounted sockets with conventional sensors/switches
Free allocation of functions: Switch/key, dimming, blinds, valuator, counter, sequencws, measuring temperature, controlling LED
Flexible LED controlling, thanks to increased output current of 3 mA commercially available LEDs and low curent LEDs can be controlled
Inputs can be reconfigured to outputs with parameterizable flashing and pulsing function
Colour coding of wiring pairs
Grooves on side of housing for switch/sensor clamps
