KNX TP LineCoupler 650

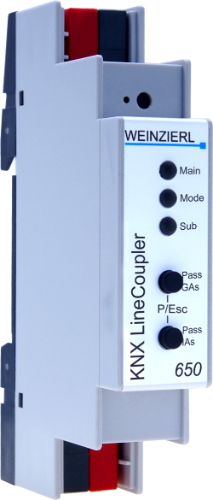

The KNX TP LineCoupler 650 connects two KNX segments (for example, a KNX line with a KNX area). It has a very compact design. The device has a filter table (8K bytes) and ensures a galvanic isolation between the lines. The coupler is compatible with the ETSÂ® software from ETS4.2. The buttons on the front panel allow disabling the telegram filter for testing purposes. The LEDs indicate the operating status and communication errors on the bus.

Mechanical data

Housing: plastic
DIN rail mounted device, width: 1 module (18 mm)
Weigth: approx 40 g

User Interface

Two keys for on device settings
Three multi color LEDs
KNX programming LED and KNX programming key

KNX

Medium TP/TP
Filter table 8k Byte

Power supply

KNX main line approx. 5 mA
KNX sub line approx. 3 mA

Connectors

Connector for KNX-TP main line (red/black)
Connector for KNX-TP sub line (red/black)
