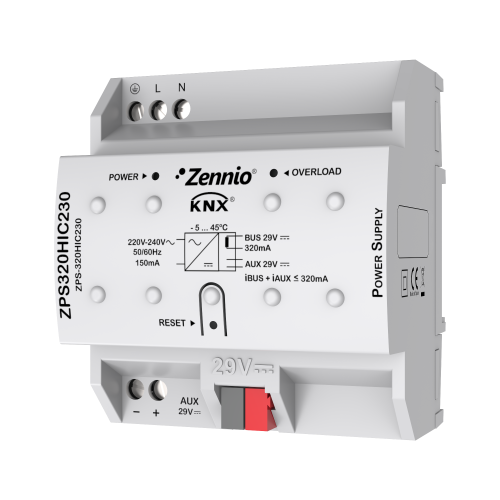

KNX power supply 320mA with ancillary power supply 29VDC. Vin: 230VAC

KNX System Power Supply with additional 29VDC output. Maximum current 320mA (KNX bus plus additional output consumption). Reset button and overload status LED, shortcircuit and overload protection. 230 V ~ 50/60Hz input voltage. Installation in DIN rail (4.5 units).

FEATURES

KNX power supply 320mA with additional output 29VDC.
Nominal output current: 320mA (KNX bus plus additional output consumption).
External 230VAC 50/60Hz power supply.
ZPS320HIC230 power supply generates and monitors the KNX system voltage supply.
Short-circuit and overload protection.
Reset button and overload status LED.
KNX coil included.
Dimensions 67 x 90 x 79mm (4.5 DIN units).
DIN rail mounting (EN 50022), through pressure.
Conformity with the CE directives (CE-mark on the right side).
