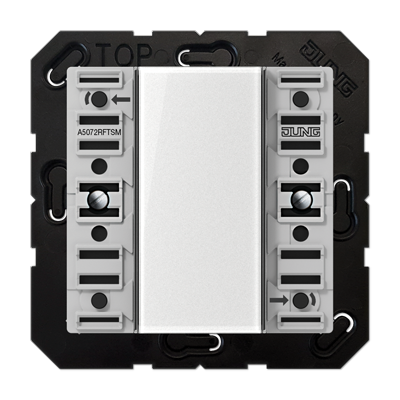

AS / A ranges KNX RF radio transmitter module 2-gang
Part Number: a5072rftsm
Price: £89.90
Description
KNX RF radio transmitter module 3-gang
Including transparent cover ref.-no.: A 50 NA
Compatible with cover kit 2-gang, complete, ref.-no.: A 502 TSA xx
Project design and commissioning with ETS5 or a more recent version.
ETS product family: Push-button
Product type: 2-gang push-button
2 green LED: actuator status
1 red LED: transmission status
Intended use
- Radio operation of loads, e.g. light on/off, dimming, Venetian blinds up/down, brightness values, calling up and saving light scenes
- Operation in cabled KNX systems via radio converter (ref.-no.: MK 100 RF)
- Mounting on appliance box according to DIN 49073, screw fixing on walls or adhesive fixing on smooth, even surfaces (glass)
Product characteristics
- Push-button functions for switching, dimming, blinds control, valuators, light scenes, etc.
- Button pairs for push-button function or rocker function
- Status indication with LED
- Integrated temperature sensor
- Battery-powered device (battery compartment accessible from front)
Included Products and Components
- AS / A ranges KNX RF radio transmitter module 2-gang ref.-no.: A 5072 RF TSM
- Transparent cover ref.-no.: A 50 NA (also available as a spare part)
Optional Accessories
Neutral cover ref.-no.: A 50 NA W, A 50 NA WW, A 50 NA SW, A 50 NA AL, A 50 NA CH, A 50 NA MOClick here to get in touch.
