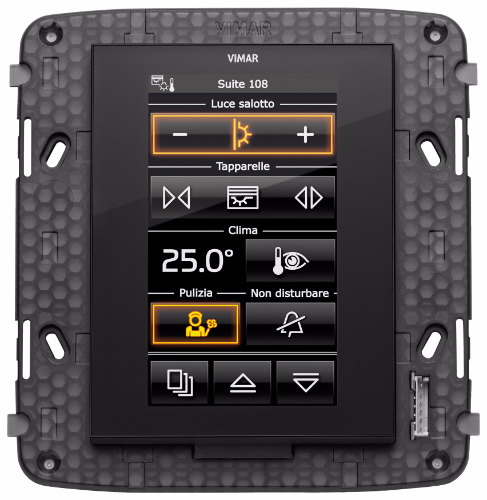

Touch screen KNX 4,3in Full Flat grey
Part Number: 21848.1
Price: £1,204.87
Description
Touch screen KNX 4,3in Full Flat grey
Touch screen colour 4.3†for control and command, Well-contact Plus, 1 input for temperature sensor, complete with support for installation in a box
of 8 modules, to be completed with Eikon Evo, Eikon, Arké or Plana cover plate.
Touchscreen device to be used in the automation system for controlling lights, roller shutters, air-conditioning and scenarios. The configuration of the touch screen is done with the Touchscreen Configurer software connecting the interface 01998 to the special connector on the front of the device. The touchscreen allows the supervision and control of all the devices in the automation system that have been configured.
CHARACTERISTICS.
CONFIGURATION.
The touchscreen is configured with the Touchscreen Configurer software and the programming interface 01998; using the ETS project database with which the system has been configured, select the functions (groups, scenarios, etc.) that you want to control via the touchscreen. The Touchscreen configurer software can be downloaded free of charge from the “Software†section of the website www.vimar.com.
N.B. The touch screen can also be configured by using the software via the interface 01998.
Touchscreen device to be used in the automation system for controlling lights, roller shutters, air-conditioning and scenarios. The configuration of the touch screen is done with the Touchscreen Configurer software connecting the interface 01998 to the special connector on the front of the device. The touchscreen allows the supervision and control of all the devices in the automation system that have been configured.
CHARACTERISTICS.
- Display: TFT 4,3â€.
- Rated supply voltage: 12-29 Vdc.
- Power input:
- 60 mA --> 29 Vdc
- 120 mA --> 12 V dc
- Terminals:
- power supply 12-29 Vdc
- TP bus
- input for temperature sensor
- Temperature sensors that can be managed via the touch screen:
- Possibility of connecting an external NTC art. 20432-19432-14432-02965.1
- Reading range external NTC: -10°C ÷ +70°C
- Maximum length of the connecting cable of the external NTC: 60 m. Use a twisted cable with a minimum cross-section of 0.5 mm2
- Possible functions:
- ON/OFF switch (lights on/off)
- roller shutter control
- dimmer control (light dimming)
- scenario activation
- climate control
CONFIGURATION.
The touchscreen is configured with the Touchscreen Configurer software and the programming interface 01998; using the ETS project database with which the system has been configured, select the functions (groups, scenarios, etc.) that you want to control via the touchscreen. The Touchscreen configurer software can be downloaded free of charge from the “Software†section of the website www.vimar.com.
N.B. The touch screen can also be configured by using the software via the interface 01998.
