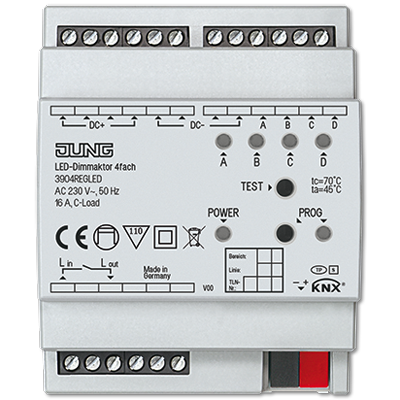

LED dimming actuator 4-gang
Part Number: 3904REGLED
Trade Price: £0.00
Price: £182.57
Description
LED dimming actuator 4-gang
Rail mounting device, 4 rail units
Intended use
- LED dimmer for controlling LEDs and LED modules 12 – 24 V (pulse width-modulated PWM)
- Mounting on DIN rail according to EN 60715 in distribution boxes
Product characteristics
- 4 individually configurable LED dimming channels
- Maximum output current of 5 A per channel
- At 24 V DC up to 480 W LED output
-
Possible channel combinations:
- 4 x independent channels
- 2 x Tunable White channels
- 2 x independent channels, 1 x Tunable White channel
- 1 x RGB channel, 1 x independent channel 1 x RGBW channel
- Activation of the colour channels via "HSV" or "RGB"
- Integrated 230 V C-load relay to switch the LED power supply
- Integrated protection with on-site display against:
- Overcurrent
- Overvoltage
- Overtemperature
- Reverse polarity
