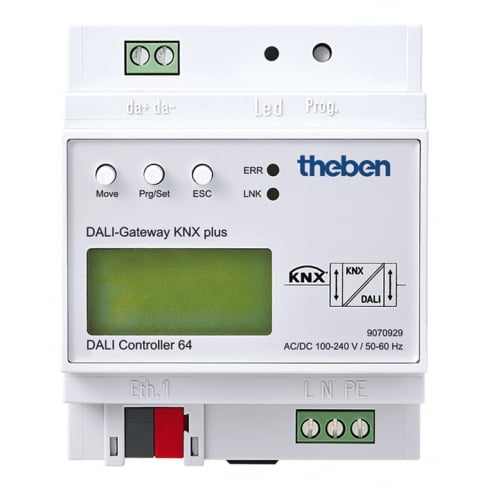

DALI-Gateway KNX plus

The DALI Gateway KNX serves as an interface between the the DALI and the KNX system
A maximum of 64 DALI members can be connected to a DALI output
Individual control of up to 64 ECGs possible
Up to 16 groups can be switched, dimmed or set to a defined value
Operation of single battery emergency lamps according to EN 62386-202
Emergency lighting systems with central battery are also supported
Status and error information for a
visualization
Scene module for up to 16 different groups
Effect module for sequencers
LC display (2x 12 characters) for menu guidance during start-up and parameter settings
The DALI start-up takes place via the control elements on the device, via the integrated web server or via the ETS plug-in
The DALI start-up takes place via the control elements on the device, via the integrated web server or via the ETS plug-in
