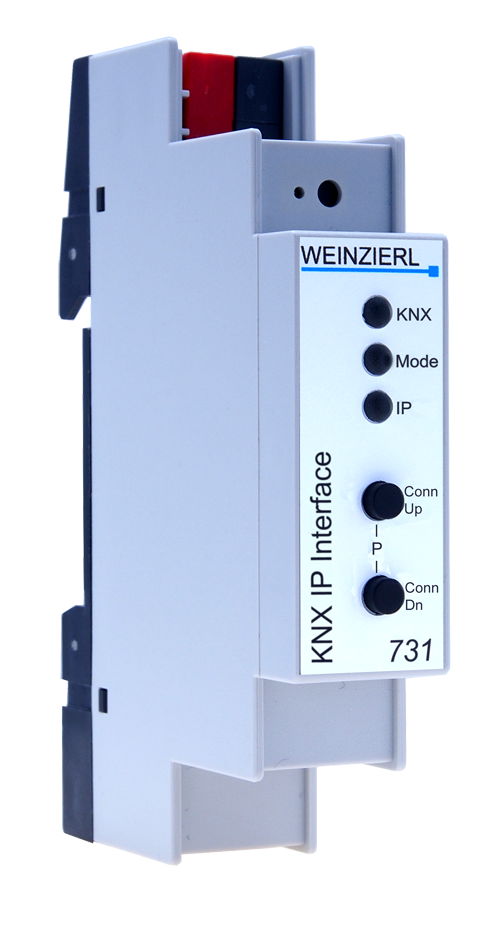

KNX IP Interface 731

The KNX IP Interface 731 is the successor of the well-tried KNX IP Interface 730. The new compact design has a width of only 1 module (18 mm) and is powered by the KNX bus.

The device is an interface between IP and KNX and can be used as programming interface for ETSÂ® Software. You can access the KNX Bus from every point of your LAN. Furthermore, the KNX IP Interface 731 allows you to program the KNX bus over the Internet. The buttons and LEDs on the device allow a local diagnosis including the operating status and communication errors.

Technical data

Mechanical Data

Housing: plastic
DIN rail mounted device, width: 1 TE

Controls and indicators

2 Buttons and 3 LEDs, multicolor
KNX programming button with LED

Ethernet

10BaseT (10Mbit/s)
5 KNXnet/IP Tunneling connections

KNX

Medium IP/TP

Power supply

From KNX Bus, approx. 15 mA

Connectors

KNX Bus connector
LAN RJ-45 socket
