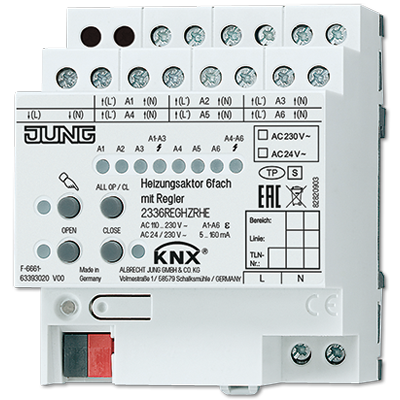

Heating actuator 6-gang
Part Number: 2336REGHZRHE
Trade Price: £0.00
Price: £209.21
Description
Heating actuator, 6-gang
Rail mounting device, 4 rail units
6 outputs "TRIAC"
With manual electronic operation and LED status indication
ETS product family: Heating, A/C, Ventilation
Product type: Valve
Intended use
- Switching of electrothermal actuators for heaters or cooling ceilings
- Installation in distribution boxes on DIN rail according to EN 60715
Product characteristics
- Integrated room temperature control with setpoint value specification
- Six independent controllers to control up to six independent rooms
- Controller function for heating and cooling
- Switching operation or PWM operation
- Actuators with characteristics opened or closed without power
- Valve drives for 230 V or 24 V controllable
- Outputs can be operated manually, construction site mode
- Feedback in manual mode and in bus mode
- Disabling of individual outputs manually or via bus
- Overload-protected, short circuit-protected; error indication with LED
- Protection against jamming valves
- Forced position
- Various setpoints for forced position or emergency operation in case of bus failure for summer or winter
- Cyclical monitoring of the input signals can be parameterised
- Feedback via bus, e.g. in case of mains failure, overload or sensor failure
- Feedback via bus, e.g. in case of mains failure, overload or sensor failure
