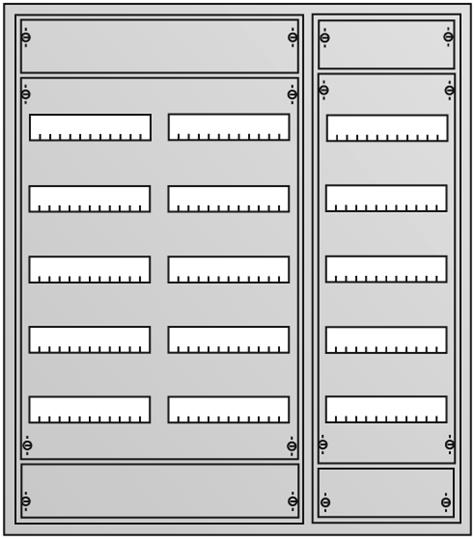

AT63R5 Distribution Board 5R with door
Part Number: 2CPX071690R9999
Trade Price: £0.00
Price: £485.51
Description
AT63R5 Distribution Board 5R with door
Distribution Boards 125 mm or 150 mm Distance Between Rows IP43 - In 125A
- Degrees of protection indicated for individual types
- The installed distribution panels can be removed for equipping and wiring
- The covers of U- and AT- distribution boards are of polystyrene
- Panels without equipment
- 125 mm or 150 mm row distance
- N/PE Quick busbars are installed according to BGV A3
- Doors and housing of 1 mm sheet steel
- From 3 fields’ width on: double-wing metal doors
- Colour: RAL 9016 (standard)
- Cavity wall-mounting set for flush-mounting versions (Accessory)
- With cable strain relief
- With one membrane flange per field width on top (AT)
- With labelling system
