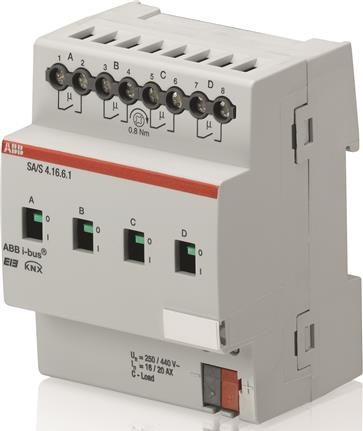

Switch Actuator, 4F 16-C, I-Det
Part Number: 2CDG110113R0011
Trade Price: £0.00
Price: £457.09
Description
Switch Actuator, 4F 16-C, I-Det
The 16/20 A Switch actuators
SA/S x.16.6.1 are modular installation
devices in Pro M Design for installation
in the distribution board. The devices
are especially suitable for switching
loads with high peak inrush currents
such as lighting equipment with compensation
capacitors or fluorescent
lamp loads (AX) to EN 60 669.
The Switch actuators feature one load current detection per output. The maximum load current per output is 20 A. Manual actuation of the switch actuator is possible using a button. This simultaneously indicates the switching state.
The Switch actuators can switch up to 12 independent electrical loads via floating contacts. The maximum load current per output is 20 A. The connection of the outputs is implemented using universal head screw terminals. Each output is controlled separately via the KNX.
Individual outputs can be copied or exchanged to reduce the programming effort withn the SA/S x.16.6.1 devices. The device does not require an additional power supply and is ready for immediate use, after the bus voltage has been applied. The Switch actuators are parameterized via the ETS. The connection to the KNX is implemented using the bus connection terminal on the front.
The Switch actuators feature one load current detection per output. The maximum load current per output is 20 A. Manual actuation of the switch actuator is possible using a button. This simultaneously indicates the switching state.
The Switch actuators can switch up to 12 independent electrical loads via floating contacts. The maximum load current per output is 20 A. The connection of the outputs is implemented using universal head screw terminals. Each output is controlled separately via the KNX.
Individual outputs can be copied or exchanged to reduce the programming effort withn the SA/S x.16.6.1 devices. The device does not require an additional power supply and is ready for immediate use, after the bus voltage has been applied. The Switch actuators are parameterized via the ETS. The connection to the KNX is implemented using the bus connection terminal on the front.
