Description

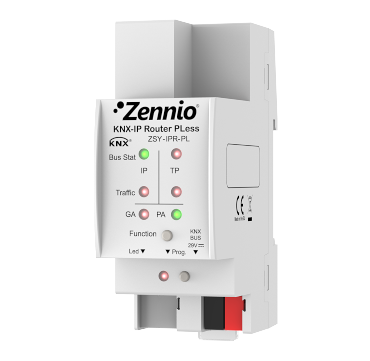

KNX-IP Router without auxiliary power supply
Zennio KNX-IP Router PLess can be used as line coupler or area coupler with a IP based backbone or main line, through KNXnet/IP Routing protocol. It also allows programming or monitoring a device from the IP network (PC, BMS system...) by using KNXnet/IP Tunneling protocol. It does not need external power supply nor PoE.
FEATURES
-
KNXnet/IP tunneling protocol (up to 4 simultaneous connections).
-
KNXnet/IP routing protocol.
-
Neither auxiliary power nor PoE is needed.
-
Load bus diagram from last hour.
-
Manual function enable/disable button.
-
Ethernet 10/100 BaseT IP (Fast Ethernet).
-
Parameterizable filtering for 14/X/X and 15/X/X.
-
Dimensions: 93 x 70 x 35mm (2 DIN units).
-
DIN rail mounting (EN 50022), through pressure.
-
Integrated KNX BCU.
-
Conformity with the CE directives.
