Multifunction Actuator 6Out 10A

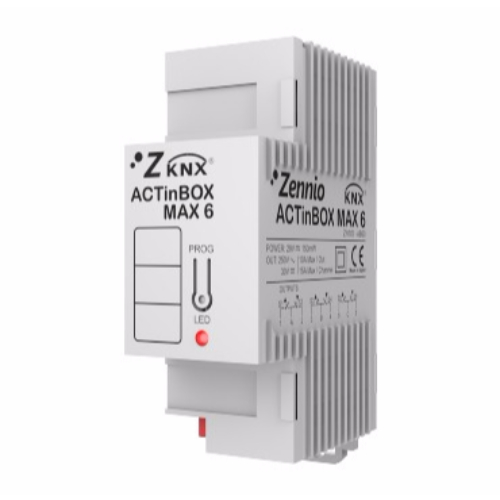

Multifunction actuator. 6 x 10A outputs. 2 DIN rail units. ACTinBOX MAX6 is a multifunction actuator that provides up to 3 configurable actuation channels. It includes advanced logical functions that provide it with numerous configuration possibilities. It is not suitable for capacitive loads.

FEATURES

Reduced size: 90 x 60 x 35 mm (2 DIN rail units).
No external supply required different from bus.
KNX BCU integrated.
3 actuation channels to be configured as:
- shutter channels, up to 3
- or individual outputs, up to 6.
Connectors wiring can be executed without the ACTinBOX. Once wired, the ACTinBOX can be installed.
DIN rail unit assembly (EN 50022), with snap fit clamp.
Including Logical Functions.
Outputs timing facilities.
Total data saving on power failure.
Not valid for C-LOAD.
CE directives OK.
