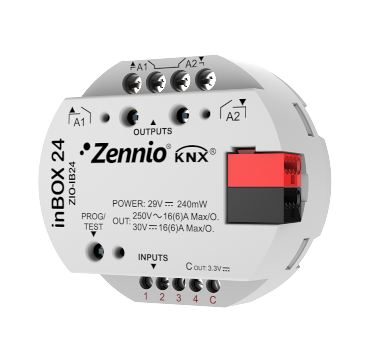

Multifunction actuator for flush mounting with 2 outputs (16A C-Load) and 4 analog-digital inputs

Multifunction actuator for flush mounting with 2 outputs (16A C-Load) which offer multiple configurations as shutter channel or individual outputs. It allows manual control of its outputs and includes 4 thermostats, 10 independent logical functions and Master-Light function. In addition, it incorporates 4 analog-digital inputs that may be configured as binary inputs for sensors and potential-free push buttons, as temperature probe inputs or as motion sensor inputs. Accessories: Temperature probes, motion sensor and AC/DC shutter adapters.

FEATURES

2 outputs configurable as:
- Shutter channel.
- Individual outputs (up to 2).
4 inputs configurable as
- Binary input.
- Temperature probe.
- Motion sensor.
10 logical functions.
4 thermostats.
Master light control.
Total data saving on KNX bus failure.
Integrated KNX BCU.
Dimensions Ã˜50 x 26mm.
Can be mounted within distribution boxes, junction boxes or wall back boxes.
Conformity with the CE directives.
