Description

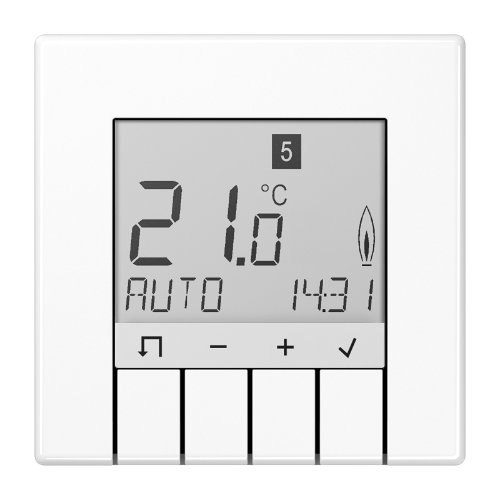

Room thermostat universal with display White

Automatic control with programmable time and temperature settings possible.
with white illuminated display.
screw fixing only, without claws.

Intended use

Measuring and controlling the room temperature
Measuring and controlling the floor temperature
Room temperature control via floor heating with a limiting function (for example in conjunction with tiled stoves)
Can be used for "heating only" or "cooling only"
Installable in a box in conformance with DIN 49073
Only for use in dry, enclosed rooms

Product characteristics

Large display with backlighting
Text display for self-explanatory operation
Programmable even when the controls are removed
Different user languages can be selected
Real-time clock with automatic switchover to/from daylight saving time
Internal temperature sensor
An external remote sensor can be connected
Three selectable and adjustable time temperature programs for automatic mode
A maximum of nine operating times per day (the setting can also be terminated after a specific operating time)
Can be individually programmed every day, or a block of operating times can be set: workdays/non-workdays, all days the same
Can be manually adjusted at any time
"Vacation" mode with the entered date (from/to)
"At-home" mode (present)
Short-time timer ("party function")
Frost protection function
Display of energy consumption for electric heating systems
Pulse width modulation (PWM) or two-point control system
Adjustable cycle time (PWM), hysteresis and minimum on/off time (two-point)
Switch-on delay, such as for burners (with two-point control)
Adaptation to valves normally open or closed
Valve protection (as a room temperature controller with and without a limiting function)
Separate resetting of user and installer settings

The control method depends on the type of heating and is determined by the installer:

Room temperature controller

The heating is turned on when the room temperature falls below the set target temperature (measured with an internal sensor or external remote sensor).

Floor temperature controller

The underfloor heating is turned on when the floor temperature falls below the set target temperature (measured using an external remote sensor).

Room temperature controller with a limiter (in conjunction with underfloor heating)

The room temperature is measured and regulated using the internal sensor. An additional external remote sensor is connected to measure the floor temperature, and a target temperature range for the floor is set. The room temperature control is deactivated when the floor temperature is outside of this range. If temperature falls below this range, the heater is turned on, and if the temperature is above this range, the heater is turned off independent of the current room temperature.

Optional Accessories

External sensor ref.-no.: FF 7.8

Are you looking for a different colour?

JUNG offer more colours than we are showing on the website:

IVORY - Room thermostat universal with display Ivory ref.no.: TR UD LS 231
BLACK - Room thermostat universal with display Black ref.no.: TR UD LS 231 SW
STAINLESS STEEL - Room thermostat universal with display Stainless steel ref.no.: TR UD ES 231
ANTHRACITE - Room thermostat universal with display Anthracite (aluminium lacquered) ref.no.: TR UD AL 231 AN
DARK - Room thermostat universal with display Dark (aluminium lacquered) ref.no.: TR UD AL 231 D
ANTIQUE BRASS - Room thermostat universal with display Antique brass ref.no.: TR UD ME 231 AT
