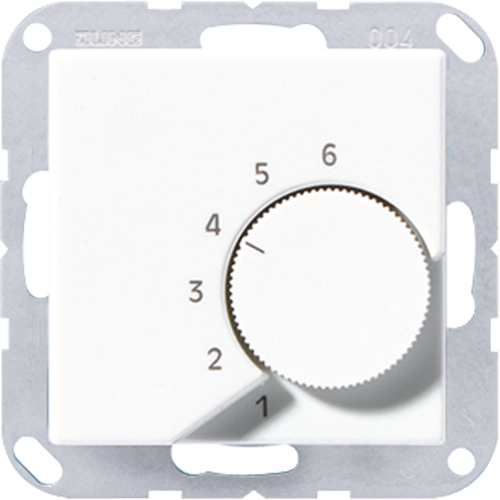

Room thermostat (make/break contact)

Screwless terminals for wires up to 2.5 mm 2.
Screw fixing only, without claws.
1-pole, 2-way, heating 10 (4) A, AC 230 V ~, 50/60 Hz.
1-pole, 2-way, cooling 5 (2) A, AC 230 V ~, 50/60 Hz.
For switching between heating/cooling the EBERLE terminal strip EVxxH/K is necessary.
(The value in brackets indicates inductive loads with cos Ï• = 0.6)
Neutral conductor required.
Hysteresis: 0.5 K
Nominal range: +5 Â°C ... +30 Â°C
When set temperature is reached the make/break contact switches over.

Are you looking for a different colour?

JUNG offer more colours than we are showing on the website:

IVORY - Room thermostat (make/break contact) Ivory ref.no.: TR A 236
