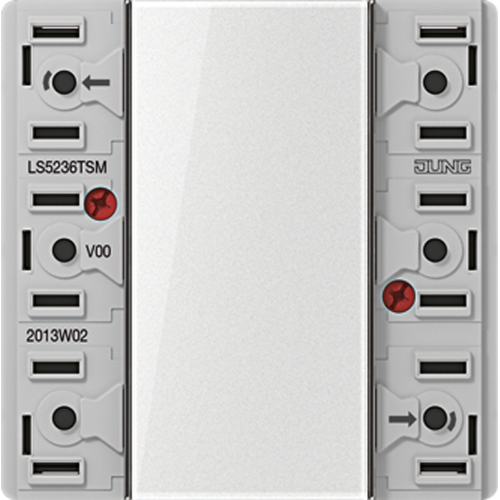

Push-button module, 6-gang 24 V AC/DC, 20 mA

Push-button module includes transparent cover ref.-no.: LS 50 NA

F 50 Push-button modules for connection to relay station ref.-no. RS 8 REGHE, dimming station ref.-no. UDS 4 REGHE or other control systems with control voltage of max. 24 V AC/DC (SELV), 20 mA.

The module is connected by means of a connection block at the back.

To be completed with cover kit
One red status LED per button
One operation LED (RGB)

In combination with the PHC system of the company PEHA the proper functioning of the status LED cannot be guaranteed. Please contact our technical service line.

Optional Accessories

Neutral cover ref.-no.: LS 50 NA W, LS 50 NA WW, LS 50 NA LG, LS 50 NA SW,AL 50 NA-L, ES 50 NA-L, AL 50 NA AN-L, ME 50 NA C-L, ME 50 NA AT-L, ME 50 NA D-L
