Description

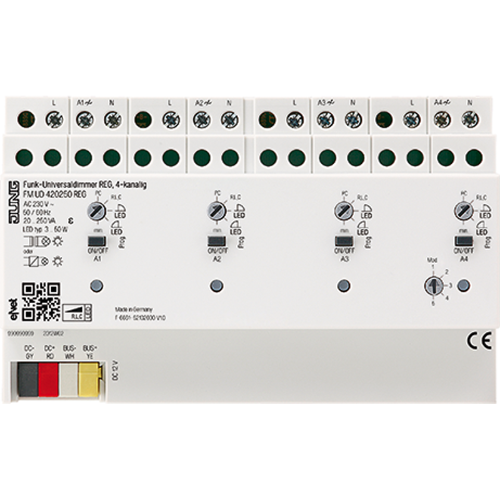

eNet radio dimming actuator 4-gang, for rail mounting

Rail mounting device, 8 rail units.

Intended use

Switching and dimming of incandescent lamps, HV halogen lamps, dimmable HV-LED lamps, dimmable compact fluorescent lamps, dimmable inductive transformers with LV halogen or LV LED lamps, dimmable electronic transformers with LV halogen or LV LED lamps
Operation with power supply (ref.-no. NT 1220 REG VDC) and receiver module (ref.-no. FM FK 32 REG) or eNet server
Operation with suitable eNet radio transmitters
Installation in distribution boxes on DIN rail according to DIN EN 60715

Switch-on via bulb-preserving soft start
Switch-on brightness for each output can be saved permanently
Minimum brightness for each output can be saved permanently
Scene operation possible
Status indication of the outputs via LED
Status feedback to radio transmitter
Outputs switchable with Prog button
Increase in output power possible through parallel switching of multiple outputs
Electronic short-circuit protection with permanent switch-off after 7 seconds at the latest
Electronic over-temperature protection
Automatic or manual setting of the dimming principle suitable for the load
Power extension possible by means of power boosters. Do not connect any HV-LED lamps or compact fluorescent lamps in combination with power boosters
