Description

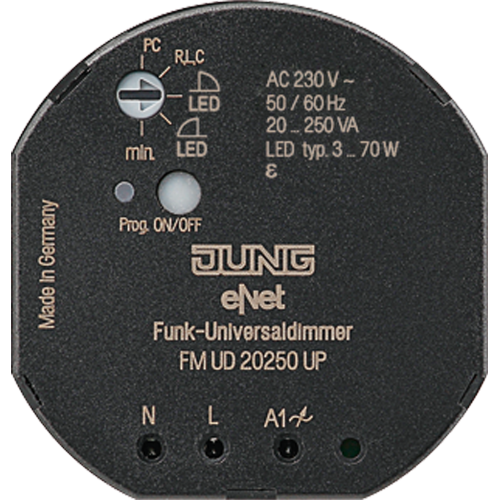

eNet radio dimming actuator mini 1-gang

Intended use

Switching and dimming of incandescent lamps, HV halogen lamps, dimmable HV-LED lamps, dimmable compact fluorescent lamps, dimmable inductive transformers with LV halogen or LV LED lamps, dimmable electronic transformers with LV halogen or LV LED lamps
Operation with suitable eNet radio transmitters
Mounting in appliance box according to DIN 49073
Mounting in surface-mounted housing or built-in housing (ref.-no. FM-EBG) for false ceilings

Switch-on via bulb-preserving soft start
Switch-on brightness can be saved permanently
Minimum brightness can be saved permanently
Scene operation possible
Status indication with LED
Status feedback to radio transmitter
Switchable with Prog button
Electronic short-circuit protection with permanent switch-off after 7 seconds at the latest
Electronic over-temperature protection
Automatic or manual setting of the dimming principle suitable for the load
Power extension possible by means of power boosters. Do not connect any HV-LED lamps or compact fluorescent lamps in combination with power boosters
