Description

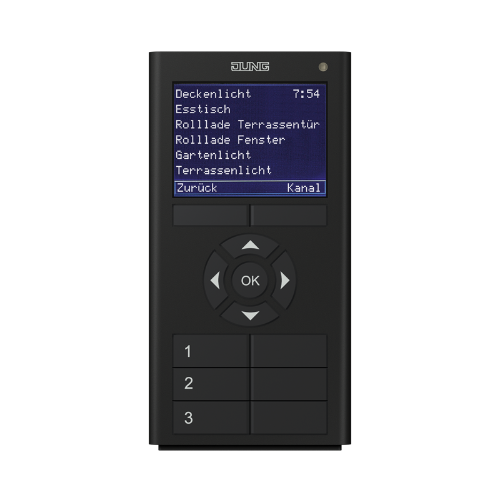

eNet radio hand-held transmitter with display

24-gang

Intended use

Hand transmitter for radio transmission of switching, dimming, blind movement and scene commands
Operation with radio actuators from the eNet system

Product characteristics

LC display for user guidance
Menu buttons with changing assignments, depending on the menu context
Navigation buttons for orientation in the menu
Three freely-configurable button pairs
Status LED to display the transmission status
10 lists for the compilation of favourite functions
16 scenes
All On and All Off
Lock-out protection for shutters or blinds
Restraint function
Master dimming function
Operation with rechargeable battery (LIR 2477, in the scope of delivery)
Charging the battery with or without docking station (ref.-no.: FM HS TF) via USB charging device
Charging cable included in the scope of delivery

Supplementary functions with eNet server

Operation locks
Update of the device software

Operating light

Switch on: Brief press of left button
Switch off: Brief press of right button
Dim brighter: Long press of left button. The dimming process ends when the button isreleased
Dim darker: Long press of right button. The dimming process ends when the button is released

Operating blind

Move blind upwards: Long press of left button
Move blind downwards: Long press of right button
Stop or adjust blind: Short press of right or left button

Operating push-button actuator

Press the right or left button: The load is switched on for the duration of the button-press

Recalling scenes

Press the scene button briefly

Actuators switch to the saved scene values.

Changing scene

Actuators switch to the saved scene.

Set new scene values
Press scene button for longer than 4 seconds

Actuators first switch to the saved scene value and save the new scene value after 4 seconds.

Dimming a scene

The dimmer actuators in a recalled scene can be dimmed, although the brightness differences between the individual dimmer actuators remain.
The master dimming function must be assigned to a rocker.

Recall a scene - either using the scene menu or a button
Dim brighter: Long press of the left master dimming button
Dim darker: Long press of the right master dimming button
