Radio hand-held transmitter
Part Number: FMHS1T
Trade Price: £0.00
Price: £49.65
Description

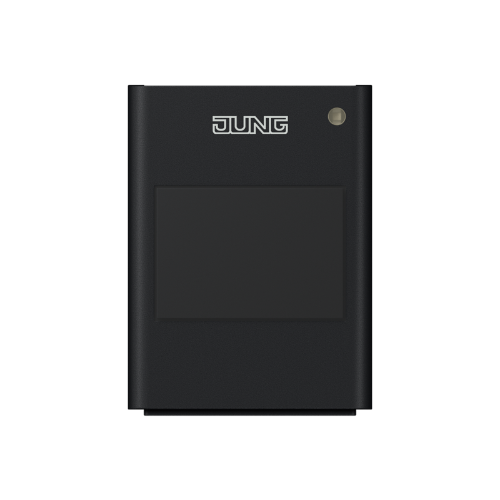

eNet radio hand-held transmitter
1-gang Toggle
Intended use
- Radio hand transmitter for radio transmission of switching, dimming, and blind movement commands
- Operation with radio actuators from the eNet system
Product characteristics
- One button for switching and dimming a channel
- Status indication with LED
- Battery-powered device
- Signalling of transmission errors can be switched off
Can be set with eNet server
- Scenes: All On, All Off, individual scenes
- Operation locks
Supplementary functions with eNet server
- Update of the device software
- Reading of error memory
Operating light
- Switching: Press the button for less than 0.4 seconds
- Dimming: Press the button for longer than 0.4 seconds. The dimming process ends when the button is released
- Switching on at minimum brightness: Press the button for longer than 0.4 seconds
Operating blind
- Moving the Venetian blind: Press the button for longer than 1 second
- Change of direction for moving blind: Press the button for longer than 1 second
- Change of direction for stationary blind: First, press the button for less than 1 second, then press the button for longer than 1 second
- Stopping the blind: Press the button for less than 1 second
- Adjusting the blind: Press the button for less than 1 second
Operating push-button actuator
- Push-button: The load is switched on for the duration of the button-press
The maximum actuation length is 60 seconds.
