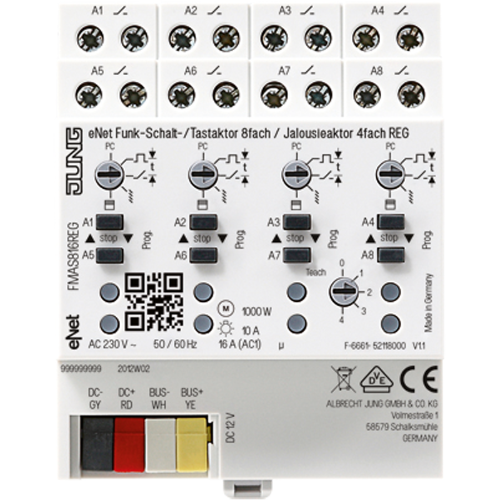

eNet Radio actuator
Part Number: FMAS816REG
Trade Price: £0.00
Price: £289.59
Description
eNet radio switch/push-button actuator 8-gang / blinds actuator 4-gang, for rail mounting
Rail mounting device, 4 rail units.
Intended use
- Switching of lighting
- Switching of single-phase fan motors
- Controlling electrically driven blinds, shutters and awnings
- Operation with suitable eNet radio transmitters
- Operation with power supply (ref.-no. NT 1220 REG VDC) and receiver module (ref.-no. FM FK 32 REG) or eNet server
- Installation in distribution boxes on DIN rail according to DIN EN 60715
Product characteristics
- Operating mode switch for switch-over of switch actuator, push-button actuator, blind actuator, shutter actuator or configuration via eNet server
- Status feedback to radio transmitter
- Scene operation possible
- Outputs switchable with Prog button
- Status indication of the outputs via LED
Switching operation:
- Switch-on telegram: Device switches on
- Switch-off telegram: Device switches off
Push-button operation
- Relay contact remains closed as long as ON or OFF telegrams are being received
- The maximum switch-on time is 60 seconds
Operating mode "Venetian blind/Rolling shutter"
- Positioning of the blind and slats via scene recall
- Position for sun protection and twilight can be saved
- Blind/shutter running time can be saved
- Slat change-over time can be saved
- Fabric-stretching for awnings
Can be set with eNet server in switching/push-button operation
- Operating mode for each output can be set separately
- Flash function
- Run-on time
- Switch-on delay / switch-off delay
- Operation as NO or NC contacts
- Switch-off warning
- Minimum switching repeat time
- Operation locks
- Continuous on, Continuous off
Can be set in the operating mode "Venetian blind/Rolling shutter" with eNet server
- Change-over time for direction change
- Running direction invertible
- Position for sun protection, twilight, lock-out protection and wind alarm
Supplementary functions with eNet server
- Update of the device software
- Reading of error memory
